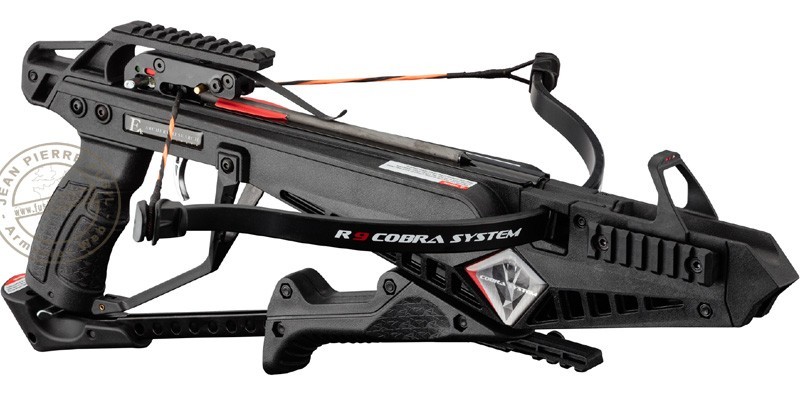

Crossbow pistol Ek Archery Cobra System R9 - 90 Lbs
Reference : B548
The Ek Cobra brand presents here a crossbow pistol with a very futuristic design, and above all very easy to use, thanks to its cocking lever. No more need to flex your muscles by pulling on the rope to be able to hang it up.
Archery finally becomes a real pleasure, accessible to all !
Find out more
Features
- Aluminium and composite body
- Bow 90 Pounds in fibreglass, with pre-assembled rope
- Ultra resistant rope
- Ergonomic pistol handle
- Automatic security
- Anti-shooting system when empty, to avoid damaging or breaking the bow.
- Natural look: V-notch at the back, and 3 fibre dots at the front
- 1 Picatiny rail on top, 1 underneath and 2 on the sides
Specifics
The Ek Cobra R9 crossbow pistol has 2 very interesting technical features :
- a quick arc assembly/disassembly system by spindle (no screws), very practical for transport,
- a simplified arming system using a lever under the handle.
Use of the crossbow pistol
- Mounting the bow : Slide the retaining pin from right to left (without removing it) to free the slot. Slide the bow in, and then put the pin back in, in order to block the bow.
- Arming : Engage the safety. Unlock the cocking lever under the handle by pulling the lock backwards. Push this lever forward until the string catches (the safety will engage), then return it to its initial position and lock it.
- Place an arrow on the rail, and slide it up to the rope retention hook: if the arrow is not pushed all the way in, the anti-pulling system will remain engaged, and the shot will not be able to be made.
- The crossbow is ready, all that remains is to disengage the safety and shoot.
- Tip : remember to grease the rope regularly (every 5 to 10 shots), to preserve its life span.
Pack
The Cobra System R9 crossbow pistol is delivered with :
- the bow is its string already mounted,
- 6 carbon arrows 7,5",
- 1 pair of protective glasses,
- a tube of wax.
- Manufacturer
- EK ARCHERY
- Cocking
- Lever
- Stock
- Synthetic
- Material
- Aluminium
- Safety
- Automatic
- Anti dry fire
- Yes
- Sights
- Yes
- Rear sight
- V
- Front sight
- 3 points optic fiber
- Dovetail rail
- Picatinny / Weaver
- Stock style
- Pistol
- Mounted string
- Yes
- Stirrup
- No
- Lenght
- 20.86"
- Width
- 18.78"
- Weight
- 4.41 Lbs
- Velocity
- 240 Fps
- Energy
- 90 Lbs
- Legislation
- D category weapon (free sale over 18 years old)
- Catégorie
- Archerie
